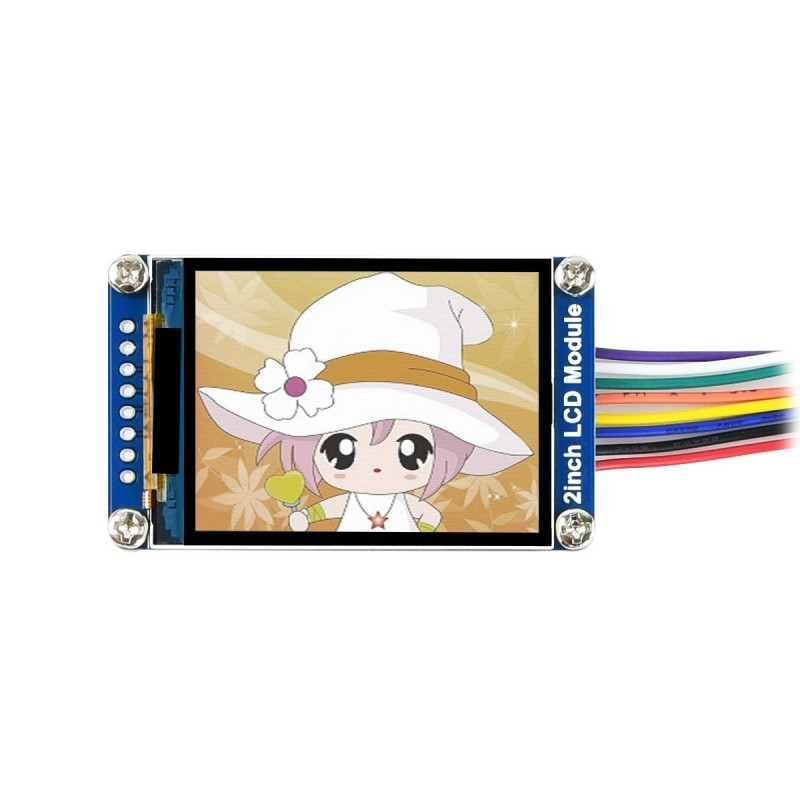

2inch LCD Display Module, IPS Screen, 240×320 Resolution, SPI Interface
Overview
This is a general LCD display Module, IPS screen, 2inch diagonal, 240×320 resolution, with embedded controller, communicating via SPI interface.
Features
- SPI interface requires minimum GPIO for controlling
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
- Driver: ST7789
- Interface: SPI
- Display color: RGB, 262K color
- Resolution: 240×320
- Backlight: LED
- Operating voltage: 3.3V
Interface
| SYMBOL |
DESCRIPTION |
| VCC |
Power (3.3V input) |
| GND |
Ground |
| DIN |
SPI data input |
| CLK |
SPI clock input |
| CS |
Chip selection, low active |
| DC |
Data/Command selection (high for data, low for command) |
| RST |
Reset, low active |
| BL |
Backlight |
Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/2inch_LCD_Module
Selection Guide
| PART NUMBER |
TYPE |
COLOR |
RESOLUTION |
DISPLAY SIZE (MM×MM) |
INTERFACES |
DRIVER |
DIMENSION (MM×MM) |
PINHEADER |
| 0.91inch OLED Module |
OLED |
White |
128×32 |
22.38×5.58 |
I2C |
SSD1306 |
36.0×12.5 |
PH2.0 connector |
| 0.95inch RGB OLED (A) |
OLED |
65K colorful |
96×64 |
20.14×13.42 |
SPI(4-wire SPI) |
SSD1331 |
31.7×37.0 |
angled/horizontal |
| 0.95inch RGB OLED (B) |
OLED |
65K colorful |
96×64 |
20.14×13.42 |
SPI(4-wire SPI) |
SSD1331 |
31.7×37.0 |
straight/vertical |
| 0.96inch LCD Module |
IPS |
65K colorful |
160×80 |
21.70×10.80 |
4-wire SPI |
ST7735S |
32.5×26.0 |
PH2.0 connector |
| 0.96inch OLED (A) |
OLED |
1/4 yellow section, 3/4 blue section |
128×64 |
21.7×11.2 |
3-wire SPI, 4-wire SPI, I2C |
SSD1306 |
33.0×33.5 |
angled/horizontal |
| 0.96inch OLED (B) |
OLED |
1/4 yellow section, 3/4 blue section |
128×64 |
21.7×11.2 |
3-wire SPI, 4-wire SPI, I2C |
SSD1306 |
33.0×33.5 |
straight/vertical |
| 1.14inch LCD Module |
IPS |
65K colorful |
240×135 |
24.91×14.86 |
4-wire SPI |
ST7789 |
35.0×32.0 |
PH2.0 connector |
| 1.3inch LCD Module |
IPS |
65K colorful |
240×240 |
23.40×23.40 |
4-wire SPI |
ST7789 |
45.0×31.0 |
PH2.0 connector |
| 1.3inch OLED (A) |
OLED |
Blue |
128×64 |
29.42×14.7 |
3-wire SPI, 4-wire SPI, I2C |
SH1106 |
40.5×37.5 |
angled/horizontal |
| 1.3inch OLED (B) |
OLED |
Blue |
128×64 |
29.42×14.7 |
3-wire SPI, 4-wire SPI, I2C |
SH1106 |
40.5×37.5 |
straight/vertical |
| 1.3inch OLED Module (C) |
OLED |
White |
64×128 |
14.70×29.42 |
4-wire SPI, I2C |
SH1107 |
30.0×39.5 |
PH2.0 connector |
| 1.5inch OLED Module |
OLED |
White (16 gray scale) |
128×128 |
26.86×26.86 |
4-wire SPI, I2C |
SSD1327 |
44.5×37.0 |
PH2.0 connector |
| 1.5inch RGB OLED Module |
OLED |
65K colorful |
128×128 |
26.86×26.86 |
3-wire SPI, 4-wire SPI |
SSD1351 |
44.5×37.0 |
PH2.0 connector |
| 1.54inch LCD Module |
IPS |
65K colorful |
240×240 |
27.72×27.72 |
4-wire SPI |
ST7789 |
50.0×35.0 |
PH2.0 connector |
| 1.8inch LCD Module |
TFT |
65K colorful |
160×128 |
34.50×28.30 |
4-wire SPI |
ST7735S |
56.5×34.0 |
PH2.0 connector |
| 2inch LCD Module |
IPS |
262K colorful |
240×320 |
30.60×40.80 |
4-wire SPI |
ST7789 |
58.0×35.0 |
PH2.0 connector |
Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.
PACKAGE CONTENT
Weight: 0.024 kg
- 2inch LCD Module x1
- PH2.0 20cm 8Pin x1
