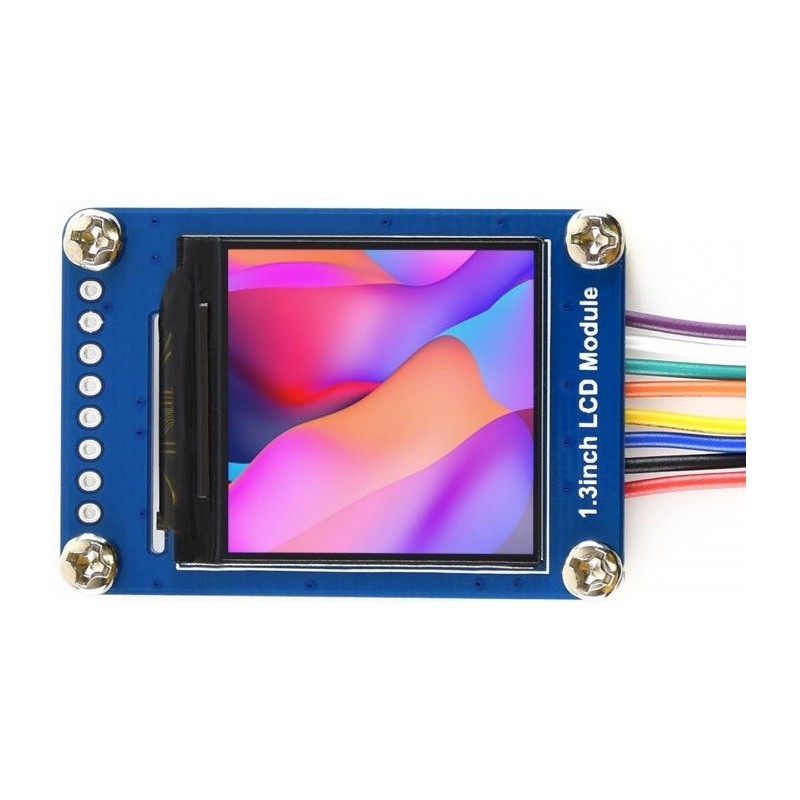

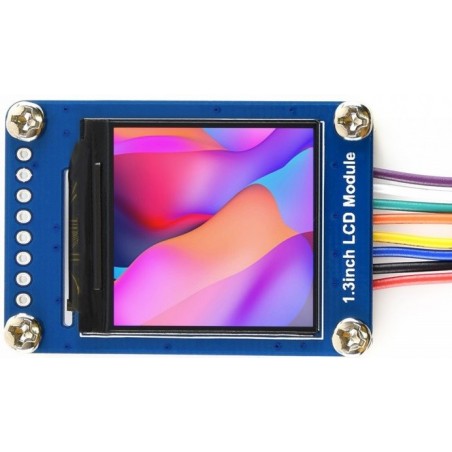

240x240, General 1.3inch LCD display Module, IPS, HD - WS

: LCD01116
€9.80
Tax included

This is a general LCD display Module, IPS screen, 1.3inch diagonal, 240x240 HD resolution, with embedded controller, communicating via SPI interface.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

This is a general LCD display Module, IPS screen, 1.3inch diagonal, 240x240 HD resolution, with embedded controller, communicating via SPI interface.

Features

  • SPI interface, requires minimum GPIO for controlling
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 240x240
  • Backlight: LED
  • Operating voltage: 3.3V

Interface

SYMBOL DESCRIPTION
VCC Power (3.3V input)
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active
BL Backlight

Dimensions

1.3inch LCD Module dimensions

Development Resources

Wiki : www.waveshare.com/wiki/1.3inch_LCD_Module

Selection Guide

Part Number Type Color Resolution Display Size (mmxmm) Interfaces Driver Dimension (mmxmm) Pinheader
0.91inch OLED Module OLED White 128x32 22.38x5.58 I2C SSD1306 36.0x12.5 PH2.0 connector
0.95inch RGB OLED (A) OLED 65K colorful 96x64 20.14x13.42 SPI(4-wire SPI) SSD1331 31.7x37.0 angled/horizontal
0.95inch RGB OLED (B) OLED 65K colorful 96x64 20.14x13.42 SPI(4-wire SPI) SSD1331 31.7x37.0 straight/vertical
0.96inch LCD Module IPS 65K colorful 160x80 21.70x10.80 4-wire SPI ST7735S 32.5x26.0 PH2.0 connector
0.96inch OLED (A) OLED 1/4 yellow section, 3/4 blue section 128x64 21.7x11.2 3-wire SPI, 4-wire SPI, I2C SSD1306 33.0x33.5 angled/horizontal
0.96inch OLED (B) OLED 1/4 yellow section, 3/4 blue section 128x64 21.7x11.2 3-wire SPI, 4-wire SPI, I2C SSD1306 33.0x33.5 straight/vertical
1.3inch LCD Module IPS 65K colorful 240x240 23.40x23.40 4-wire SPI ST7789 45.0x31.0 PH2.0 connector
1.3inch OLED (A) OLED Blue 128x64 29.42x14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5x37.5 angled/horizontal
1.3inch OLED (B) OLED Blue 128x64 29.42x14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5x37.5 straight/vertical
1.5inch OLED Module OLED White (16 gray scale) 128x128 26.86x26.86 4-wire SPI, I2C SSD1327 44.5x37.0 PH2.0 connector
1.5inch RGB OLED Module OLED 65K colorful 128x128 26.86x26.86 3-wire SPI, 4-wire SPI SSD1351 44.5x37.0 PH2.0 connector
1.8inch LCD Module TFT 65K colorful 160x128 34.50x28.30 4-wire SPI ST7735S 56.5x34.0 PH2.0 connector

Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.



PACKAGE CONTENT

Weight: 0.019 kg

  1. 1.3inch LCD Module x1
  2. PH2.0 20cm 8Pin x1

11.3inch-LCD-Module-1_93.jpg 2PH2.0-wire-20cm-8PIN_93.jpg
