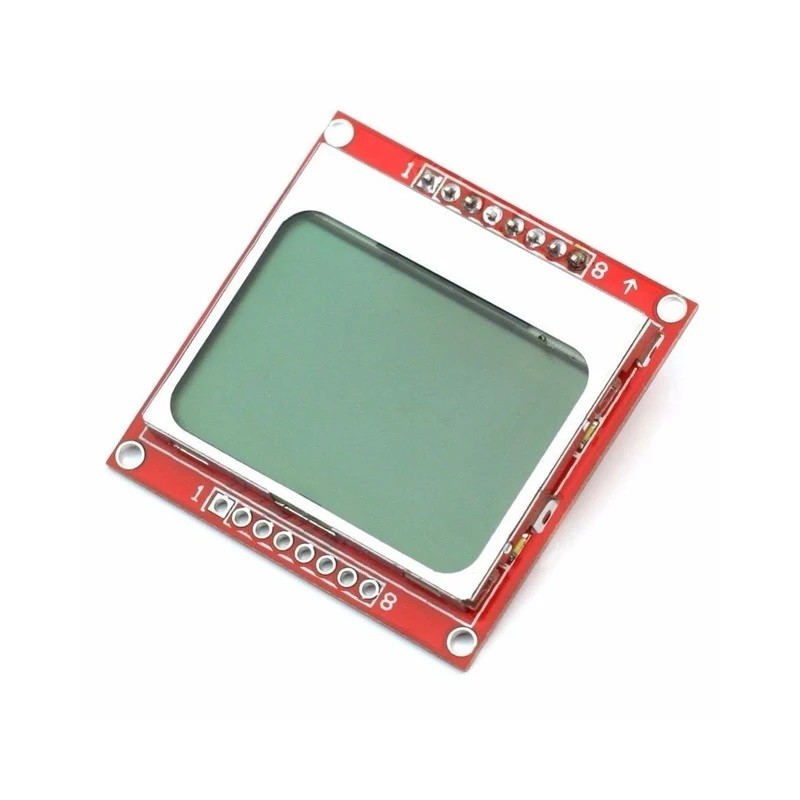

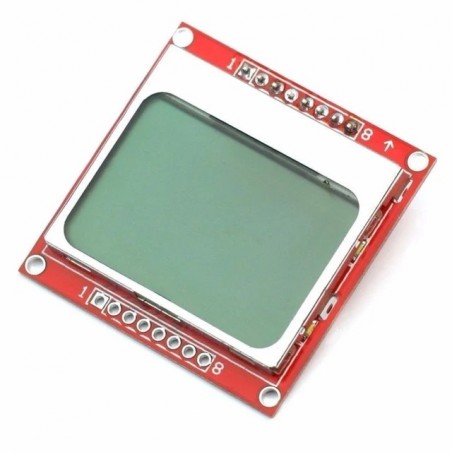

Display LCD Nokia 5110 84x84px

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Arduino / Funduino Kokia 5110 LCD Module
Display with great cost / benefit ratio for your project, because it is a monochrome graphic display with resolution of 84x48 pixels.


- Power supply: 3.3V
- Voltage: (signal pins): 3.3 - 5V
- Backlight: Blue
- Dimensions: 43,5x43x5mm

Pinout:
- RST - Reset
- EC - Chip Select
- DC - Data / instruction selection
- DIN - Serial data line
- CLK - Serial Clock Line
- VCC - VCC (3.3V)
- LIGHT - Backlight control (connect to GND)
- GND - GND
