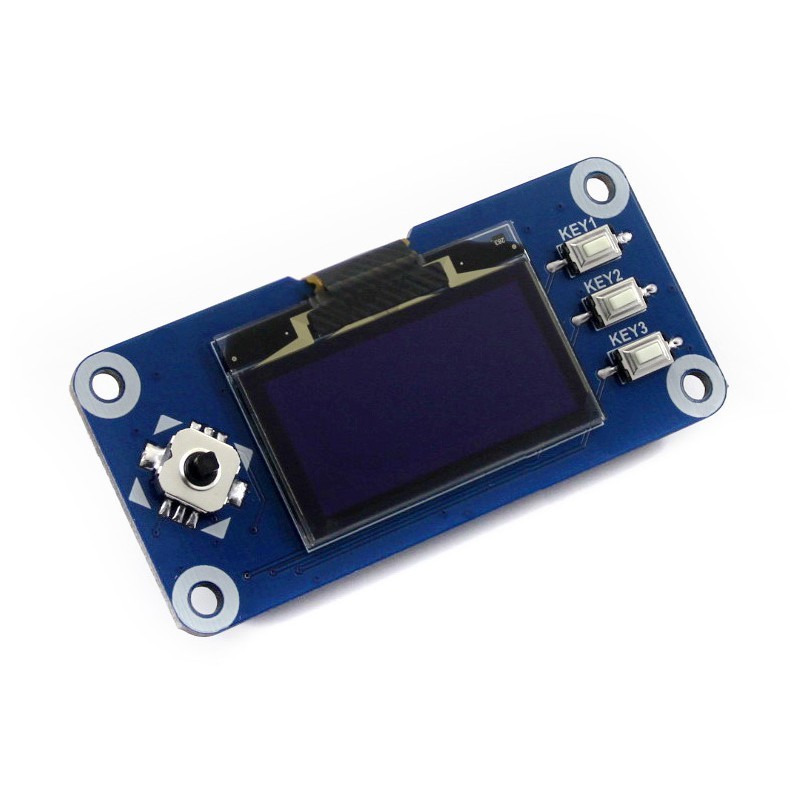

128x64, 1.3inch OLED display HAT for Raspberry Pi

: LCD01074
€9.90
Tax included

This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features

  • Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W
  • Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor
  • 1x joystick (5-position), 3x pushbuttons, handy and useful
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Driver: SH1106
  • Interface: 4-wire SPI, 3-wire SPI, I2C
  • Display color: blue
  • Resolution: 128x64
  • Operating voltage: 3.3V

Interface

SYMBOL Raspberry Pi PIN (BCM) DESCRIPTION
KEY1 P21 Button 1/GPIO
KEY2 P20 Button 2/GPIO
KEY3 P16 Button 3/GPIO
Joystick Up P6 Joystick Up
Joystick Down P19 Joystick Down
Joystick Left P5 Joystick Left
Joystick Right P26 Joystick Right
Joystick Press P13 Joystick Press
SCLK P11/SCLK SPI clock input
MOSI P10/MOSI SPI data input
DC P24 Data/Command selection (high for data, low for command)
CS P8/CE0 Chip selection, low active
RST P25 Reset, low active

Dimensions

1.3inch OLED HAT dimensions

Development Resources

Wiki : www.waveshare.com/wiki/1.3inch_OLED_HAT
