0.96inch OLED (B)

: LCD01042
€9.90
Tax included

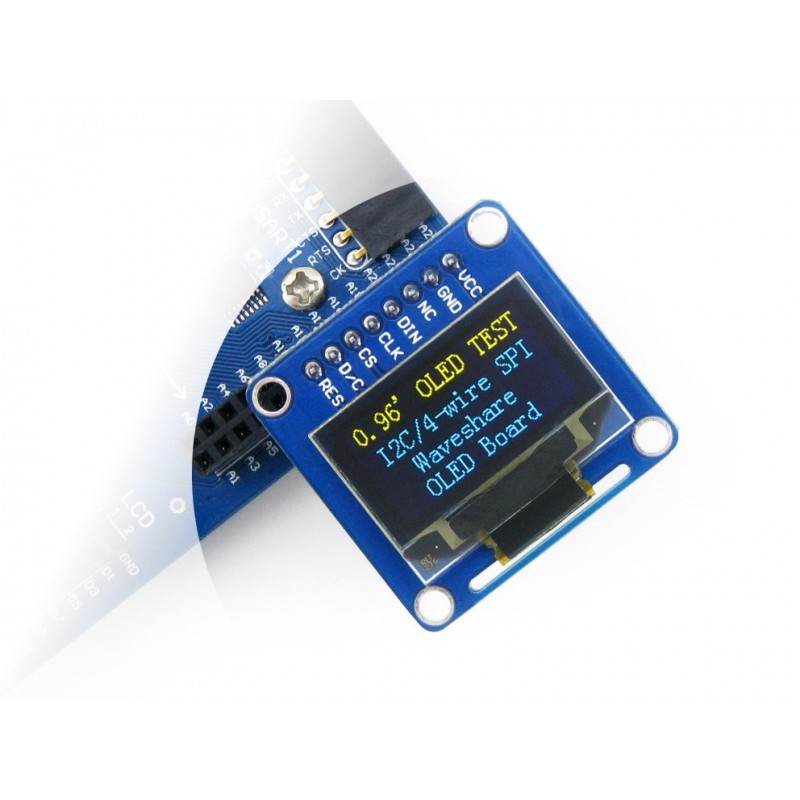

0.96inch OLED, SPI/I2C interfaces, straight/vertical pinheader

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Key Parameters

Driver Chip SSD1306
Interface 3-wire SPI, 4-wire SPI, I2C
Resolution 128*64
Display Size 0.96inch
Colors 1/4 yellow section, 3/4 blue section
Visible Angle >160°
Operating Temp. (℃) -20~70
Storage Temp. (℃) -30~80
Operating Voltage 3.3V / 5V
Applicability Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

Interface

PIN NO. SYMBOL DESCRIPTION
1 VCC Power positive (3.3~5V power input)
2 GND Ground
3 NC NC
4 DIN Data input
5 CLK Clock signal input
6 CS Chip selection, low active
7 D/C Command signal, low level for command, high level for data
8 RES Reset signal, low active

Hardware Config

Mode/Interface BS0/BS1 DIN SCK
3-wire SPI 1/0 MOSI SCLK
4-wire SPI 0/0
I2C 0/1 SDA SCL



Development Resources

Wiki : www.waveshare.com/wiki/0.96inch_OLED_(B)
