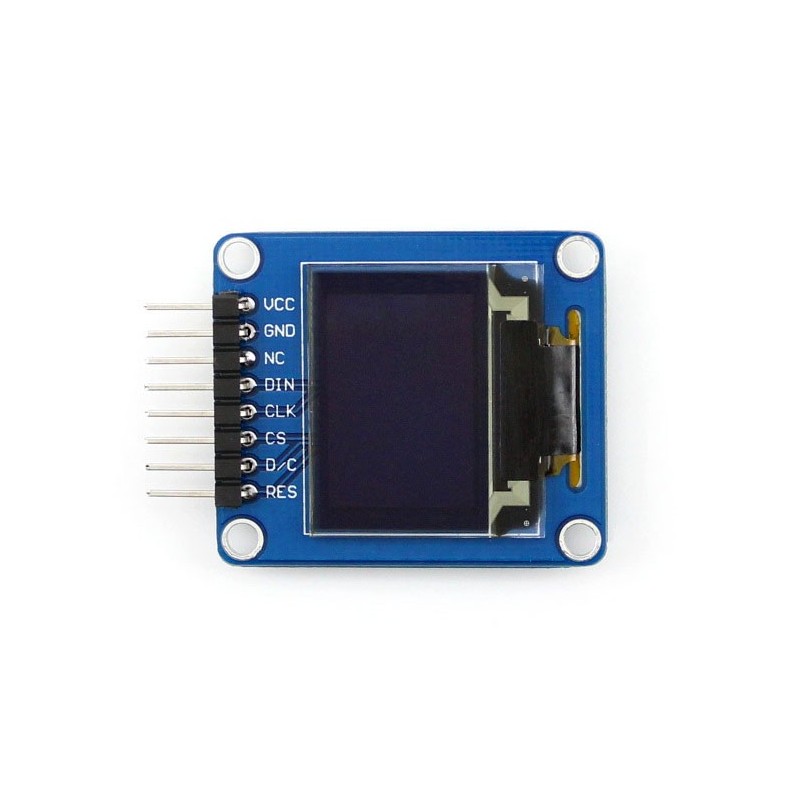

0.95inch RGB OLED (A)
  • 0.95inch RGB OLED (A)
  • 0.95inch RGB OLED (A)
  • 0.95inch RGB OLED (A)

0.95inch RGB OLED - curved/horizontal pinheader

: LCD01041
€12.95
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Key Parameters

Driver Chip

SSD1331

Interface

SPI

Resolution

96×64

Display Size

0.95inch

Colors

65K colorful

Visible Angle

>160°

Operating Temp. (℃)

-20~70

Storage Temp. (℃)

-30~80

Operating Voltage

3.3V / 5V



Interface

PIN NO.

SYMBOL

DESCRIPTION

1

VCC

Power positive (3.3~5V power input)

2

GND

Ground

3

NC

NC

4

DIN

Data input

5

CLK

Clock signal input

6

CS

Chip selection, low active

7

D/C

Command signal, low level for command, high level for data

8

RES

Reset signal, low active



Ordering Info

  • 0.95inch RGB OLED (A): curved/horizontal pinheader



Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/0.95inch_RGB_OLED_(B)



Dimension

Selection Guide

Part Number

Color

Resolution

Display Size (mm×mm)

Interfaces

Driver

Dimension (mm×mm)

Pinheader

0.95inch RGB OLED (A)

65K colorful

96×64

20.14×13.42

SPI(4-wire SPI)

SSD1331

31.7×37.0

curved/horizontal

0.95inch RGB OLED (B)

65K colorful

96×64

20.14×13.42

SPI(4-wire SPI)

SSD1331

31.7×37.0

straight/vertical

0.96inch OLED (A)

1/4 yellow section, 3/4 blue section

128×64

21.7×11.2

3-wire SPI, 4-wire SPI, I2C

SSD1306

33.0×33.5

curved/horizontal

0.96inch OLED (B)

1/4 yellow section, 3/4 blue section

128×64

21.7×11.2

3-wire SPI, 4-wire SPI, I2C

SSD1306

33.0×33.5

straight/vertical

1.3inch OLED (A)

Blue

128×64

29.42×14.7

3-wire SPI, 4-wire SPI, I2C

SH1106

40.5×37.5

curved/horizontal

1.3inch OLED (B)

Blue

128×64

29.42×14.7

3-wire SPI, 4-wire SPI, I2C

SH1106

40.5×37.5

straight/vertical
LCD01041
